Model:WA810860B

Size:165*109*86 cm

Product Introduction

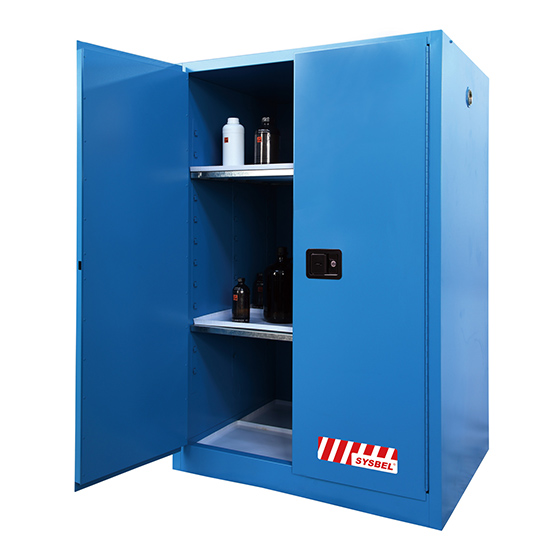

SYSBEL CE and FM Approved 90 Gal Weakly corrosive liquid safety storage cabinet

SYSBEL is a professional manufacturer and supplier of chemical safety cabinets in Shanghai, referred to as a professional chemical safety cabinet manufacturer. It has been committed to the production of "fm fire cabinets" also known as "chemical safety cabinets" and "fire cabinets" for a long time. "It is the first company in China to obtain FM certification from the United States. The fm fireproof cabinets produced by SYSBEL are widely used in petrochemical, industrial manufacturing, university laboratories, food industry, automobile manufacturing, new energy and other industries. Development is escorted.

SYSBEL high-quality weakly corrosive liquid safety storage cabinets are equipped with PE leak-proof trays, which are anti-corrosive and anti-leakage; it is specially used to store flammable and combustible weakly corrosive liquids, such as acetic acid, formaldehyde, acrylic acid and other acids , Suitable for laboratories, scientific research institutes, etc.

Weakly corrosive cabinet details display:

The standard PVC pallet prevents the leaked weak corrosive liquid from corroding the cabinet;
The double-layer 18 Ga (1.2 air device) effectively reduces the concentration of volatile substances and prevents fire;
The unique spill-proof laminate prevents accidental leakage of chemicals from overflowing. The laminate can be adjusted arbitrarily according to user needs, storing more chemical containers, etc., every 6.5cm;
SYSTEX built-in three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation;
The safety padlock configuration (optional), realizes the management of double double locks, in line with the provisions of China's "Regulations on the Safety Management of Hazardous Chemicals";
Resin powder coating treatment, bright surface, dust-proof, rust-proof and moisture-proof;
The 2"(53mm) deep leak tank prevents the leaked liquid from overflowing, and meets the leak standard;
The continuous piano hinge makes the cabinet door close and open smoothly;
The eye-catching label can be identified under low-visibility light, providing additional security;

Weakly corrosive cabinets' advantages and features:

1, Double-wall construction with 38 mm insulating air space for fire resistance;

2, Over 1.2 mm thick, fully welded, construction holds squareness for longer life, offering greater protection in a fire;

3, 5.3 cm leak tight sump at the bottom of cabinet’s maximally catches incidental drips;

4, Door can be fully opened to 180°, easy to operate, three-point latch with a manual lock for better security;

5, Standardized warning label of corrosive chemical storage cabinets is highly visible and anti-corrosive;

6, Unique spill-catcher shelves catch incidental drips and adjust on 6 cm centers;

7, Durable&chemical resistant, lead-free powder coat inside and outside, cabinet, reduce effects of corrosion and humidity;

8, 2 inches vents with integral flame arresters in both sides of every cabinet;

9, In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding.

Specification

The product application

Product Packaging

Weakly corrosive cabinets' package
